120A Anderson Fast Power Products battery plug connector

120A Yellow High-Performance Battery Plug

120A SED Fast Power Products battery plug connector

120A SED Fast Power Products battery plug connector, a versatile AC/DC connector designed for a wide range of SEDlications.

With its high-quality materials, advanced features, and customizable options, this connector is perfect for power supply, outdoor equipment, electric vehicles, energy systems, medical devices, industrial SEDlications, and military SEDlications.

Its superior performance and safety features make it an ideal choice for demanding environments.

Item No :
120A SED Power Connector
Order(MOQ) :
1
Product Origin :
China
Color :
Yellow
Shipping Port :
Shenzhen
Lead Time :
Customer specified time

Inquire Now

Product categories

New products

Product Details

120A SED Fast Power Products battery plug connector

1.Product Introduction:

The SED Fast Power Products battery plug connector is constructed with top-quality materials to ensure durability and reliability. The connector body is made of high-grade plastic/PC material, tested to meet UL94V-0 standards for flame resistance. This product excels in its ability to withstand high frequencies, making it suitable for various AC/DC SEDlications.

The connector's contact terminals are crafted from silver-plated copper, ensuring excellent conductivity and reducing the risk of corrosion. This high-performance design allows for efficient power transmission and minimizes energy loss.

The plug connector is designed using a cold-press process, which offers superior mechanical strength and stability. Each unit undergoes rigorous quality control and testing to guarantee exceptional performance and longevity.

2.Technical Parameters：

Rated current(Amperes)	120A
Rated voltage(Volts)	600V
Insulation Resistance	5000MΩ
Without load(Contact/Disconnect Cycles)	To 10000
Flammability	UL94 V-0
Average. Connection/disconnect(N)	120±5

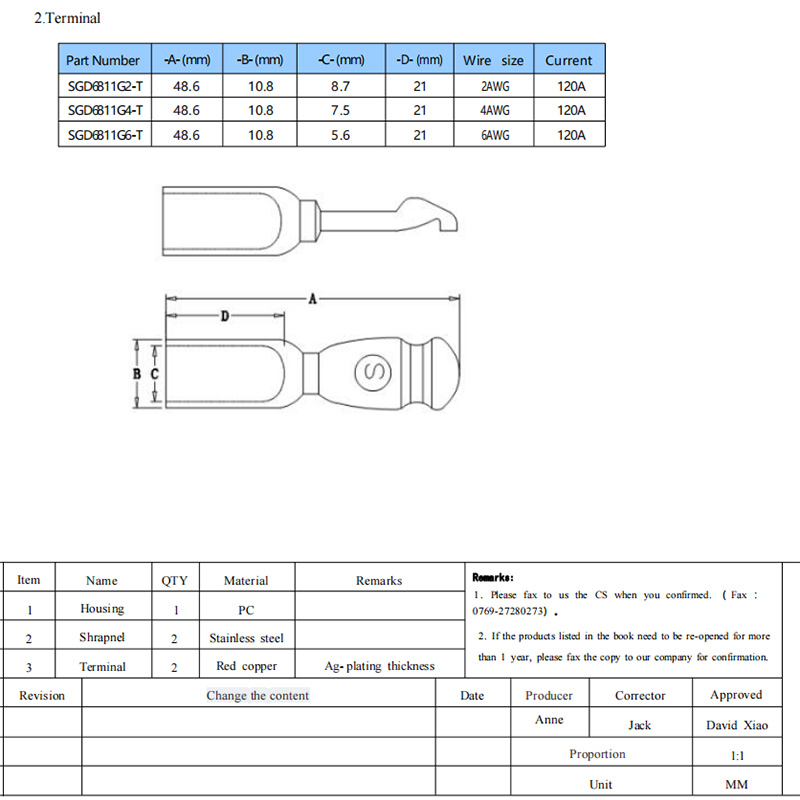

（AWG）Contact Barrel Wire Size(AWG)	2AWG~6AWG
Environment Temperatures(℃)	-20℃---125℃
Material of terminal	Red copper
Process of production	Precision punching
Fully Ag-plating on surface, it’s Ag-plating thickness	1μm
Shrapnel	Stainless steel（304）
Process of production	Precision punching Plastic Injection

3.Picture Introduction:

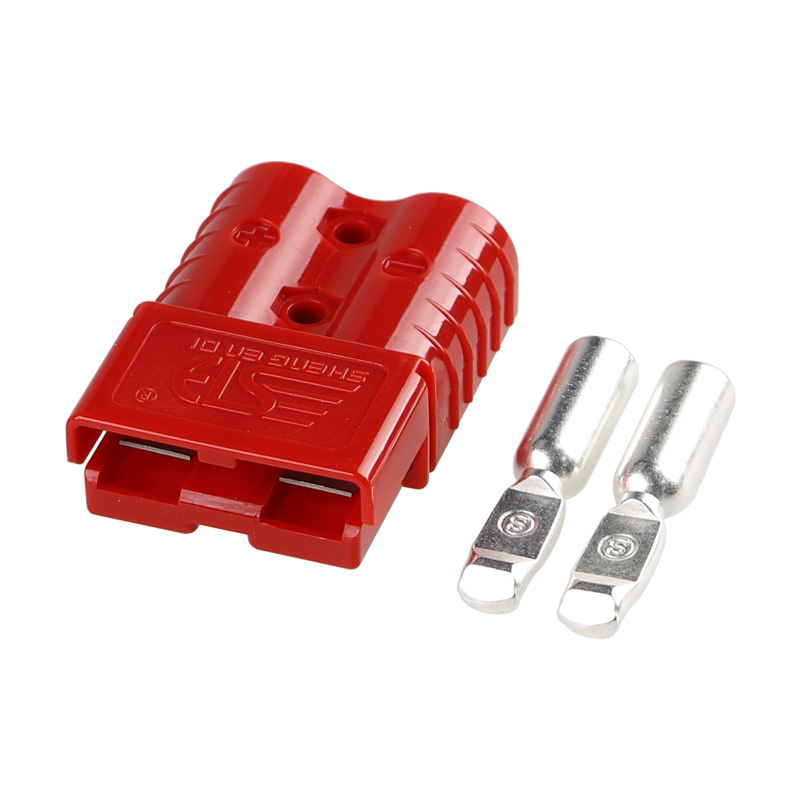

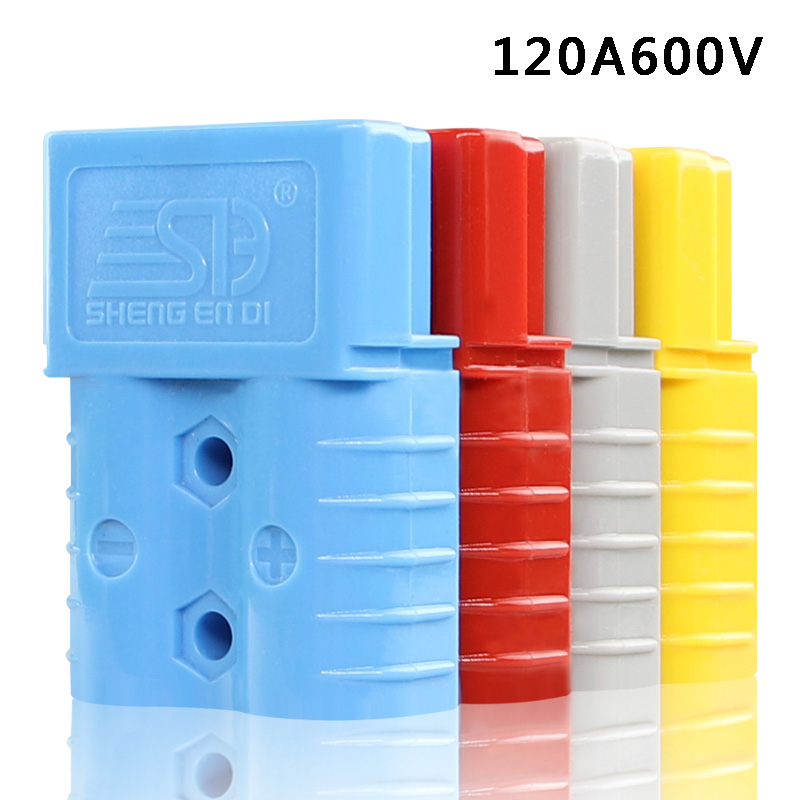

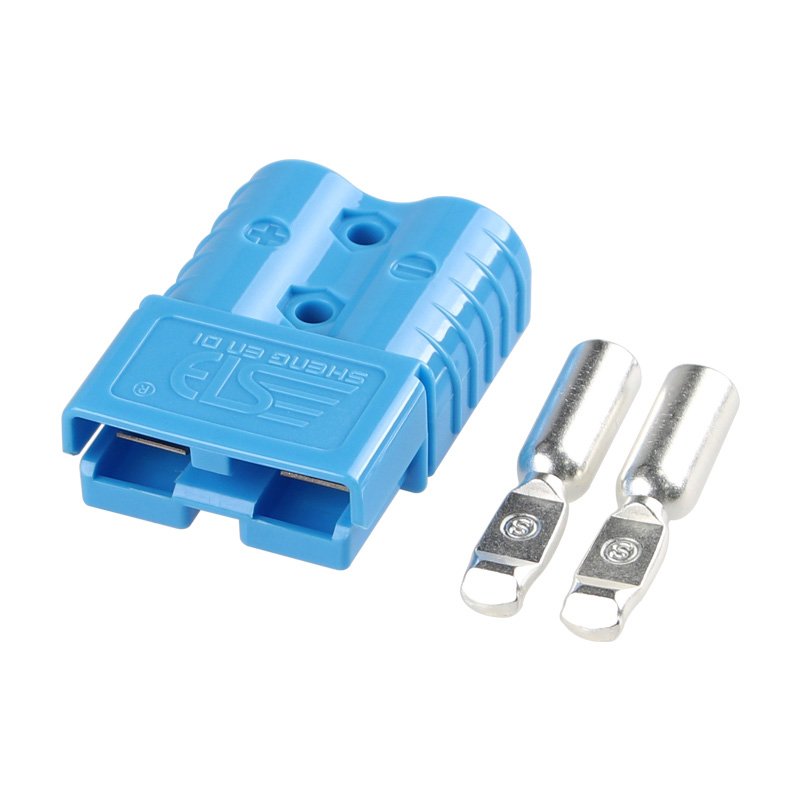

120A 600 V ac/dc 120A 600V Charging plug high-current battery connector

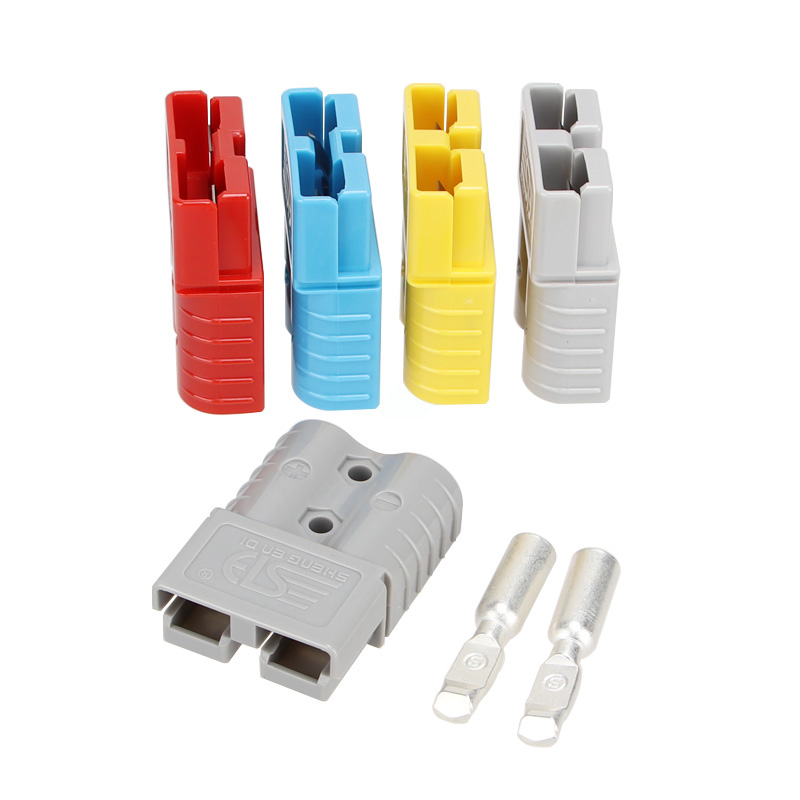

Battery Connector Series Female to Male Battery Connector

4.Our Advantages:

∗At our company, we take pride in our ability to seamlessly integrate the research, development, production, and sales of various high-current connectors and accessories for new energy SEDlications.

∗Offering unparalleled OEM cable harness customization and full-service connector and wire harness solutions, our team delivers a comprehensive SEDroach to meeting your needs.

∗From start to finish, our goal is to provide exceptional quality and service, ensuring the success of your project. Trust us to be your all-in-one partner for cutting-edge new energy interconnectivity.

5.Packages & Shipping:

Our products are packaged to international standards, ensuring that your order arrives in immaculate condition. We are based in Guangdong, China, and dispatch all orders from this location. With our commitment to professional and efficient service, you can trust us to deliver your goods with utmost care and attention to detail.

6.FAQ:

Q: What services does your company offer for high-current connectors and cabling solutions?

A: Our company specializes in providing professional development, design, and integrated cabling solutions for high-current connectors ranging from 5A to 350A. We also offer production and sales of a wide range of high-current connectors, plugs, and UPS/EPS power sockets to support various industries, including automotive, electric vehicles, communication power, medical equipment, power distribution equipment, material handling equipment, solar energy, and new energy.

Our company boasts its own production and R&D base, and has obtained ISO9001 quality system certification. All of our products meet CE, 3C, and other certifications, as well as RoSH and REACH environmental protection requirements. With our commitment to quality and excellence, we offer reliable and efficient solutions to support our clients' businesses.
