Product Details

SGX75A 600V power supply battery plug connector

1.Product Introduction:

The SGX75A 600V power supply battery plug connector is suitable for both AC/DC power sources and can operate with ease under extreme temperatures ranging from -20℃ to +125℃.

The IP65-rated water-resistant connector adds an additional layer of reliability by ensuring that the connector remains safe, even in harsh outdoor environments.

At Sheng En Di, we take pride in our commitment to delivering the best in class products that stand the test of time.

The SGX75A 600V power supply battery plug connector is a true reflection of our commitment to excellence and our passion for innovating products that deliver outstanding performance.

2.Technical Parameters：

Rated current(Amperes)	75A
Rated voltage(Volts)	600V
Insulation Resistance	≥9900MΩ
Without load(Contact/Disconnect Cycles)	To 5000
Flammability	UL94 V-0
Average. Connection/disconnect(N)	100±10
The insertion force of finished products	≥10kgf
The pullout force of finished products	≥10kgf
（AWG）Contact Barrel Wire Size(AWG)	6~10/0AWG
Environment Temperatures(℃)	-20℃---75℃
Material of terminal	Red copper
Process of production	Precision punching
Fully Ag-plating on surface, it’s Ag-plating thickness	0.5μm
Shrapnel	Stainless steel
Process of production	Precision punching Plastic Injection

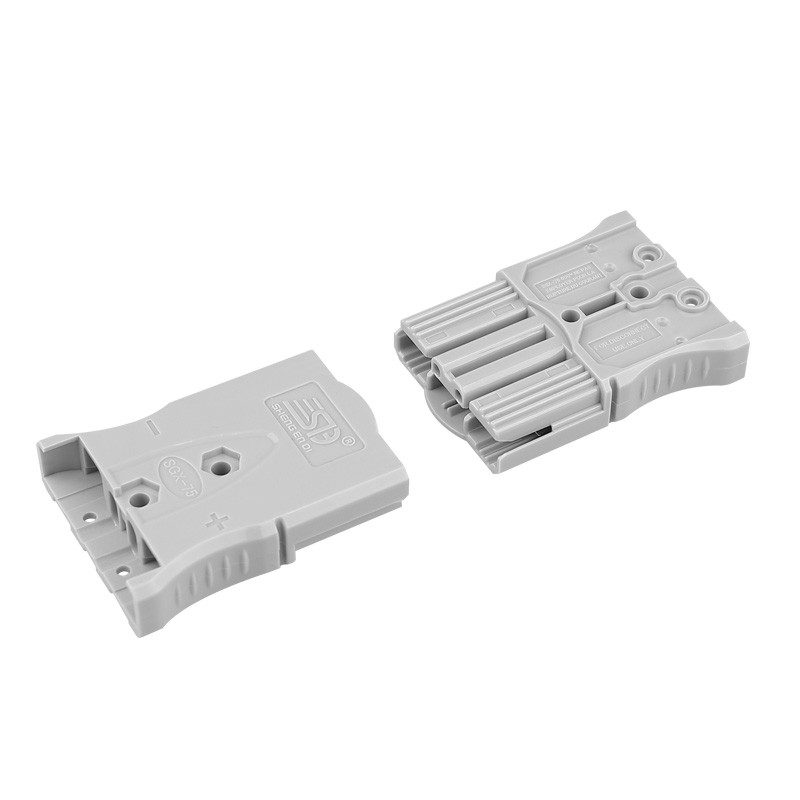

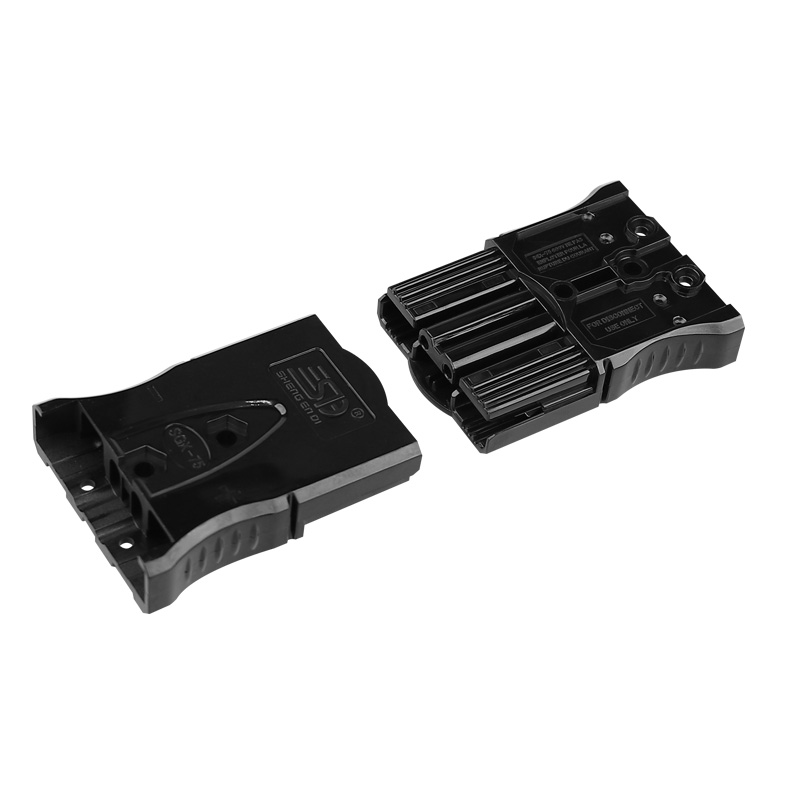

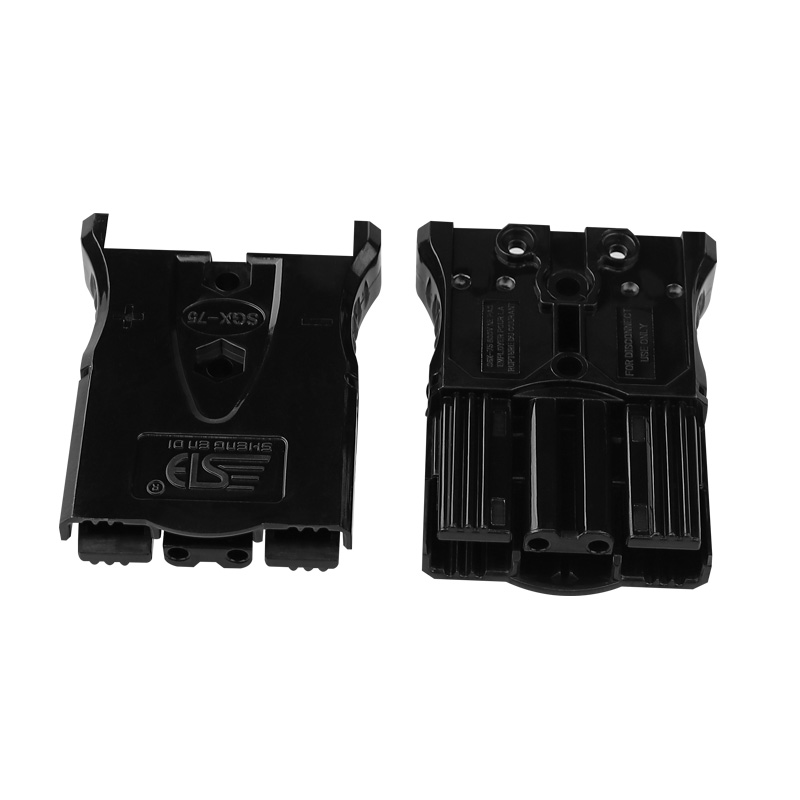

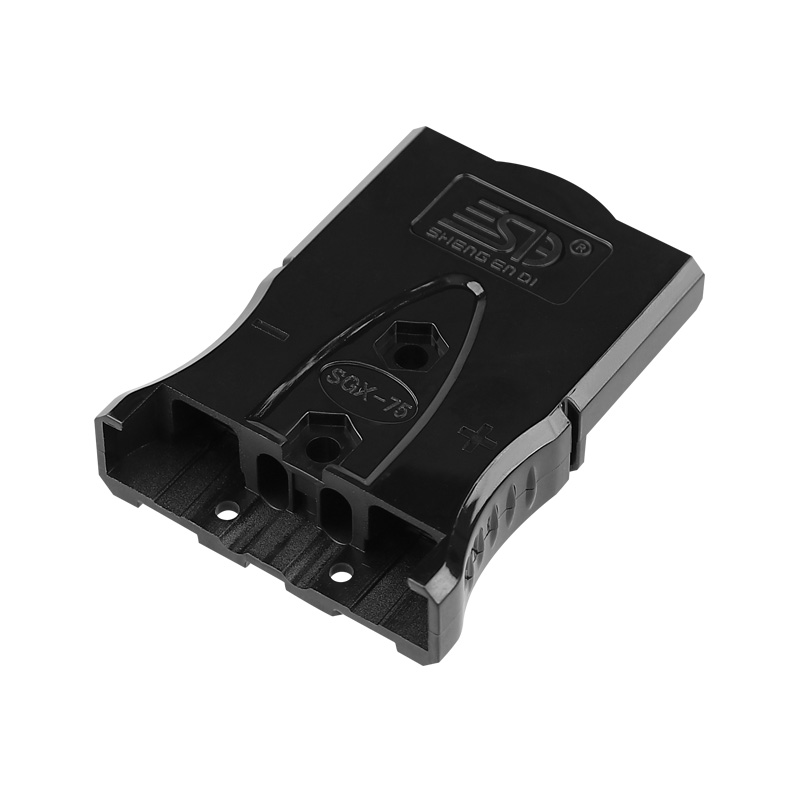

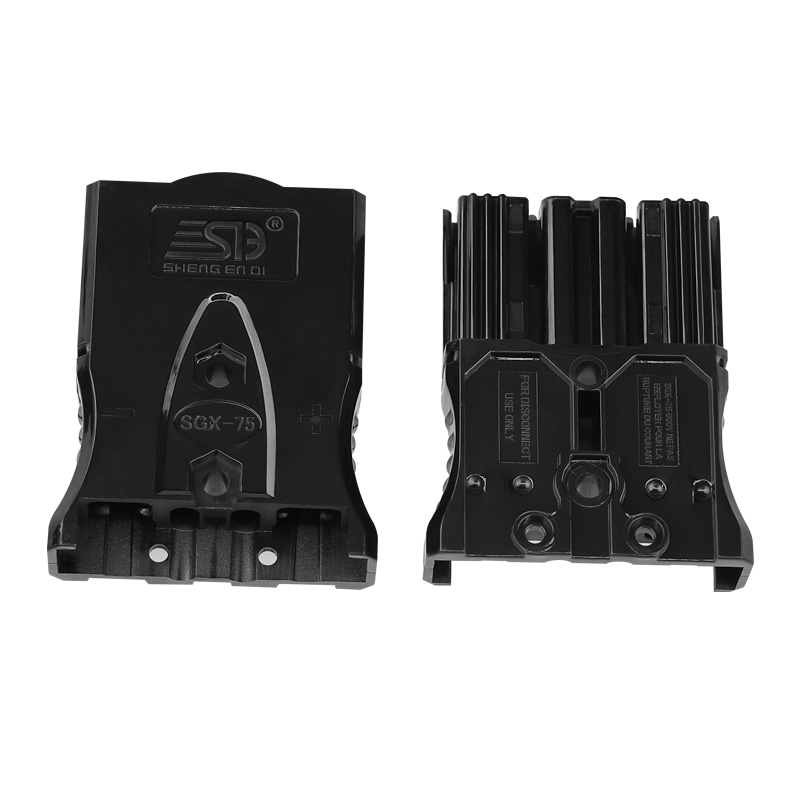

3.Picture Introduction:

SGX75A 600V Charging plug

SGX75A 600V ac/dc high-current battery connector

Battery Connector Series Female to Male Battery Connector

4.Our Advantages:

∗At our company, we take pride in our ability to seamlessly integrate the research, development, production, and sales of various high-current connectors and accessories for new energy applications.

∗Offering unparalleled OEM cable harness customization and full-service connector and wire harness solutions, our team delivers a comprehensive approach to meeting your needs.

∗From start to finish, our goal is to provide exceptional quality and service, ensuring the success of your project. Trust us to be your all-in-one partner for cutting-edge new energy interconnectivity.

5.Packages & Shipping:

Our products are packaged to international standards, ensuring that your order arrives in immaculate condition. We are based in Guangdong, China, and dispatch all orders from this location. With our commitment to professional and efficient service, you can trust us to deliver your goods with utmost care and attention to detail.

6.FAQ:

Q: What services does your company offer for high-current connectors and cabling solutions?

A: Our company specializes in providing professional development, design, and integrated cabling solutions for high-current connectors ranging from 5A to 350A. We also offer production and sales of a wide range of high-current connectors, plugs, and UPS/EPS power sockets to support various industries, including automotive, electric vehicles, communication power, medical equipment, power distribution equipment, material handling equipment, solar energy, and new energy.

Our company boasts its own production and R&D base, and has obtained ISO9001 quality system certification. All of our products meet CE, 3C, and other certifications, as well as RoSH and REACH environmental protection requirements. With our commitment to quality and excellence, we offer reliable and efficient solutions to support our clients' businesses.
