120A Blue SEDs Connector with Plug Terminal – a robust and versatile solution for your electrical connectivity needs.
This high-quality connector is meticulously crafted to ensure reliable performance and seamless power transfer.
Item No :
SDOrder(MOQ) :
1Payment :
TTProduct Origin :
DongguanColor :
BlueShipping Port :
ShenzhenLead Time :
Delivery time according to customer requirements1.Product Introduction:
1. **Color Options for Every Application:**

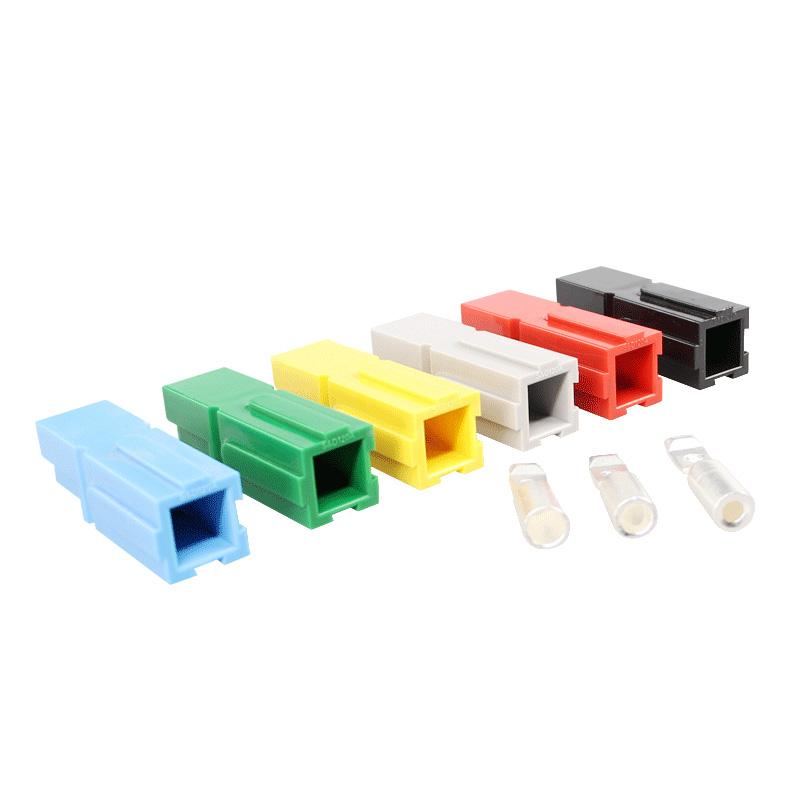

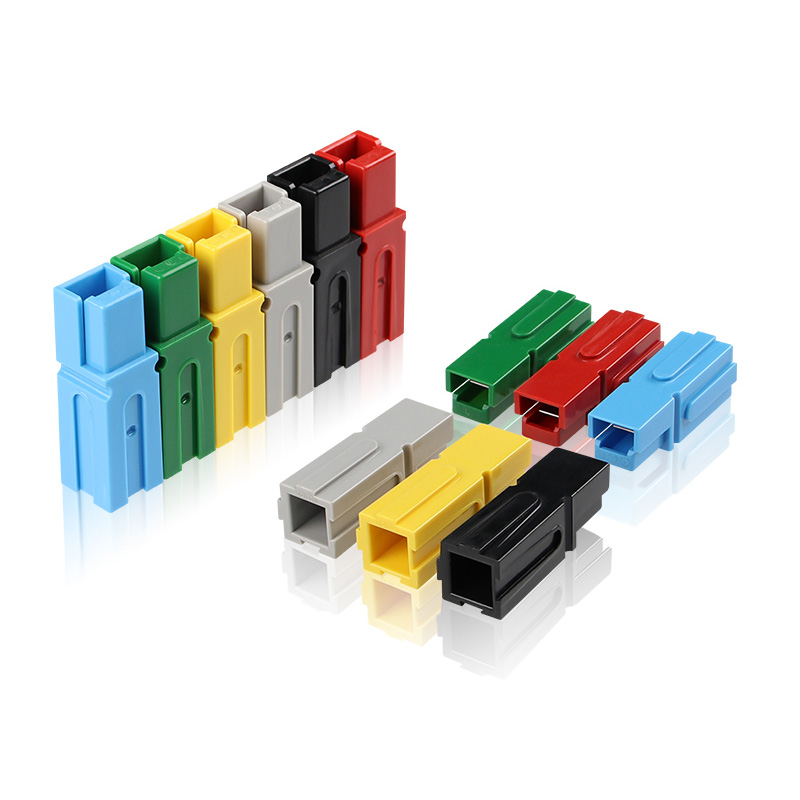

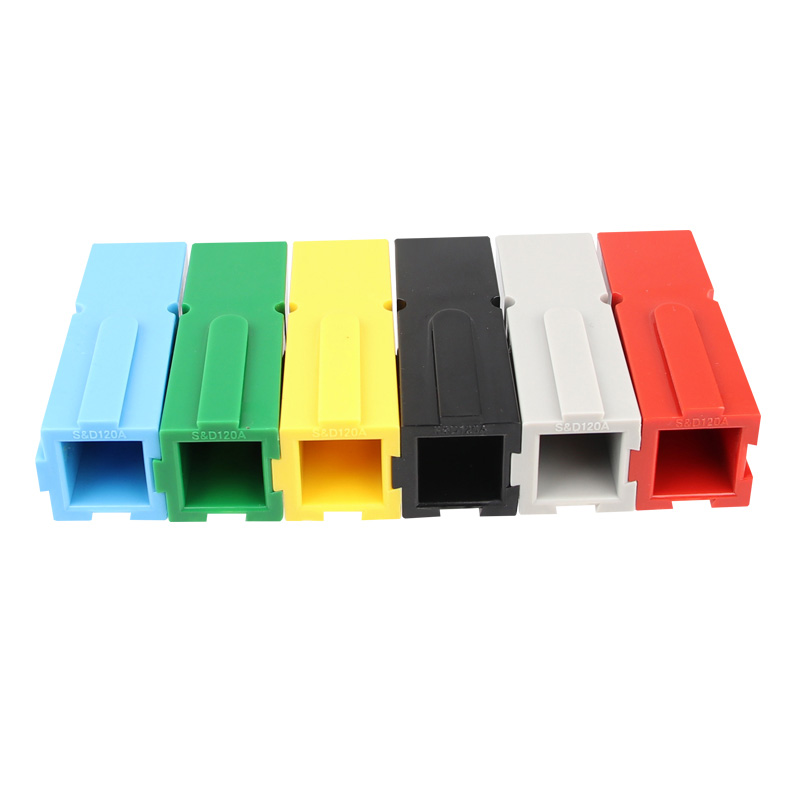

- The connector is available in a variety of vibrant colors, including red, black, grey, blue, green, and yellow, allowing you to choose the color that suits your specific SEDlication.
2. **Durable and Flame-Retardant Construction:**
- The connector's housing is made of high-quality PC material with a UL94V-0 flame retardant rating, ensuring durability and safety in various environments.
3. **Precision Injection Molding:**
- Crafted using advanced injection molding technology, the connector exhibits precision and consistency in its design, providing a secure and stable connection.
4. **Premium Contact Material:**

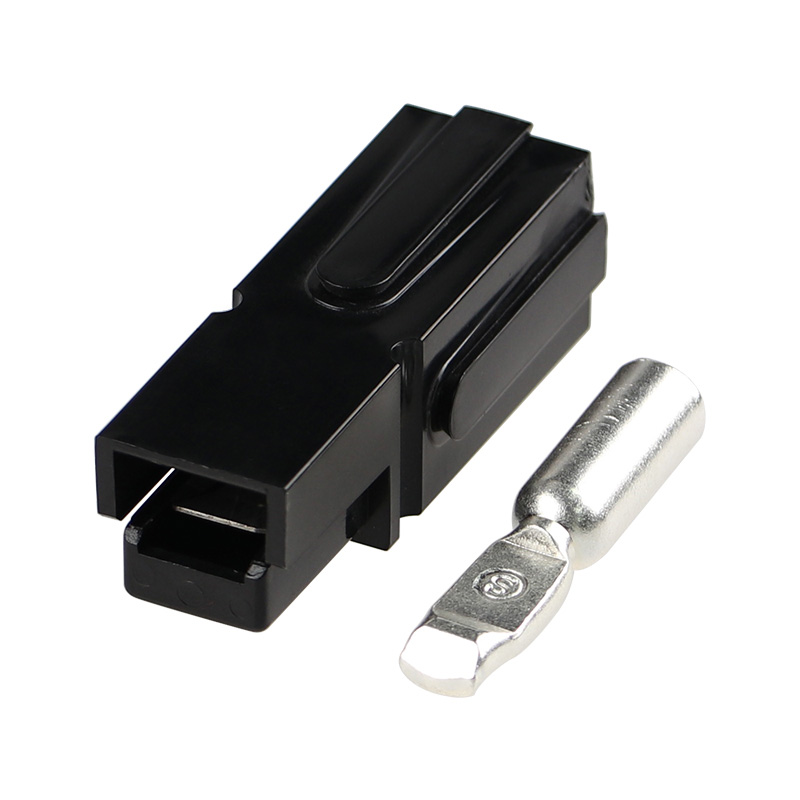

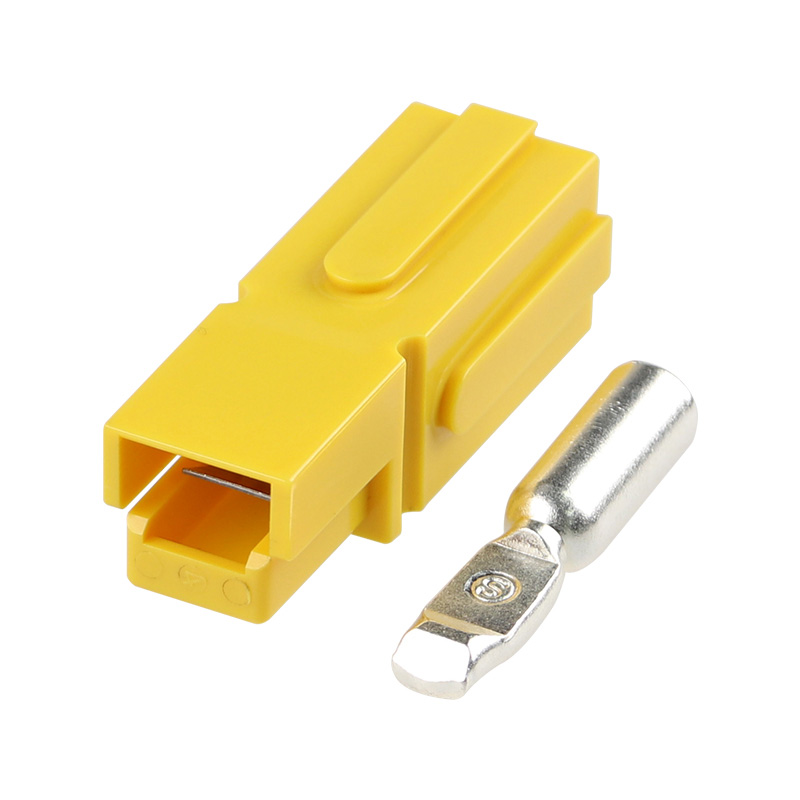

- The connector features copper terminals with a silver-plated coating, ensuring excellent conductivity and corrosion resistance for long-lasting performance.
5. **Cold Press Hexagonal Crimping Process:**
- The connector's wiring process employs a cold press hexagonal crimping technique, enhancing the connection's stability and reducing the risk of loosening over time.
6. **Versatile Plug-and-Play Design:**

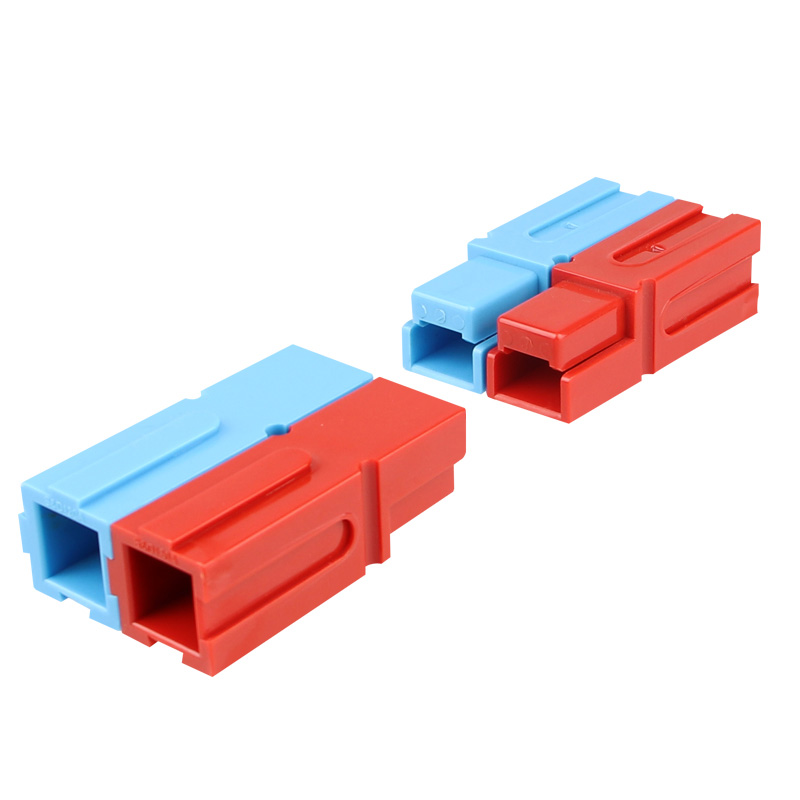

- The connector is designed with a universal plug terminal, eliminating the need to distinguish between male and female connectors. Same-color connectors seamlessly plug into each other, providing convenience and ease of use.
2.Technical Parameters:
Rated current(Amperes) | 120A |
Rated voltage(Volts) | 600V |
Insulation Resistance | 5000MΩ |
Without load(Contact/Disconnect Cycles) | To 10000 |
Flammability | UL94 V-0 |
The insertion force of finished products |
≥2.5kgf |
The pullout force of finished products |
≥3kgf |
(AWG)Contact Barrel Wire Size(AWG) | 02~ 6AWG |
Environment Temperatures(℃) |
-20℃---125℃ |
Material of terminal | Red copper |
Process of production | Precision punching |
Fully Ag-plating on surface, it’s Ag-plating thickness | 1μm |
Shrapnel | Stainless steel |
Process of production | Precision punching Plastic Injection |

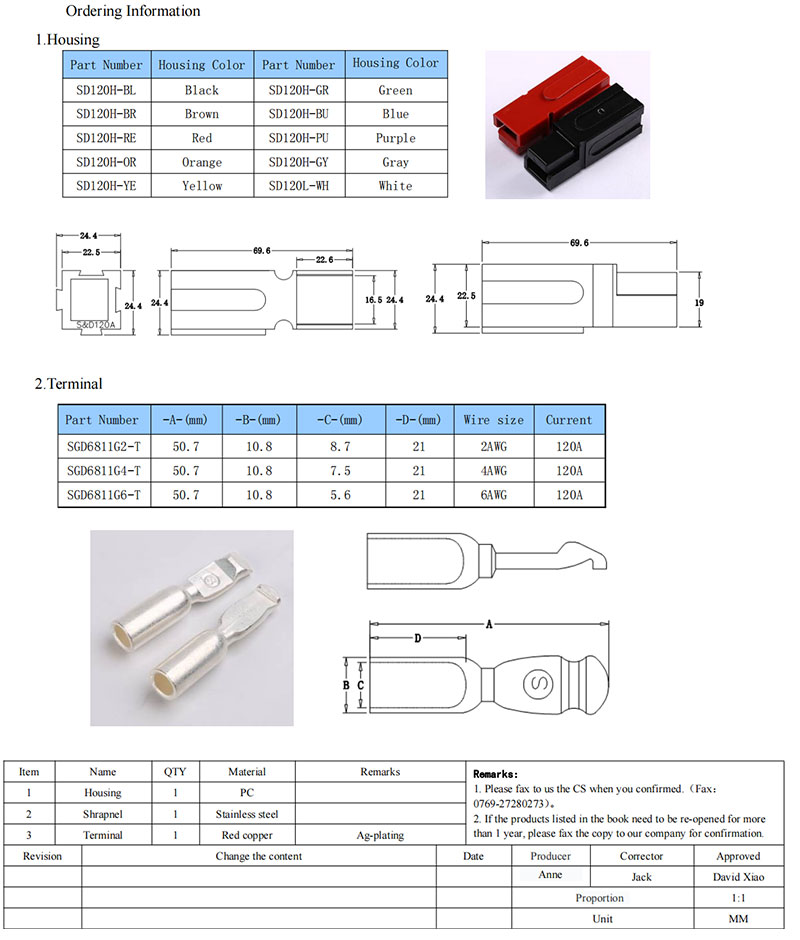

3.Picture Introduction:
4.Our Advantages:
∗At our company, we take pride in our ability to seamlessly integrate the research, development, production, and sales of various high-current connectors and accessories for new energy SEDlications.
∗Offering unparalleled OEM cable harness customization and full-service connector and wire harness solutions, our team delivers a comprehensive SEDroach to meeting your needs.
∗From start to finish, our goal is to provide exceptional quality and service, ensuring the success of your project. Trust us to be your all-in-one partner for cutting-edge new energy interconnectivity.
5.Packages & Shipping:
Our products are packaged to international standards, ensuring that your order arrives in immaculate condition. We are based in Guangdong, China, and dispatch all orders from this location. With our commitment to professional and efficient service, you can trust us to deliver your goods with utmost care and attention to detail.
6.FAQ:
Q: What services does your company offer for high-current connectors and cabling solutions?
A: Our company specializes in providing professional development, design, and integrated cabling solutions for high-current connectors ranging from 5A to 350A. We also offer production and sales of a wide range of high-current connectors, plugs, and UPS/EPS power sockets to support various industries, including automotive, electric vehicles, communication power, medical equipment, power distribution equipment, material handling equipment, solar energy, and new energy.
Our company boasts its own production and R&D base, and has obtained ISO9001 quality system certification. All of our products meet CE, 3C, and other certifications, as well as RoSH and REACH environmental protection requirements. With our commitment to quality and excellence, we offer reliable and efficient solutions to support our clients' businesses.
