SED Single Pole 1Pin Electrical Power Battery Connector, a high-performance solution for efficient power distribution.
Designed for versatility and durability, this connector is engineered to meet the demands of various SEDlications, ensuring a reliable electrical connection.
Item No :
SDOrder(MOQ) :
1Payment :
TTProduct Origin :
DongguanColor :
RedShipping Port :
ShenzhenLead Time :
Delivery time according to customer requirements1.Product Introduction:
1. **Amperage Capacity:** With a robust 120A rating, this connector provides ample power for a wide range of electrical devices and SEDlications.

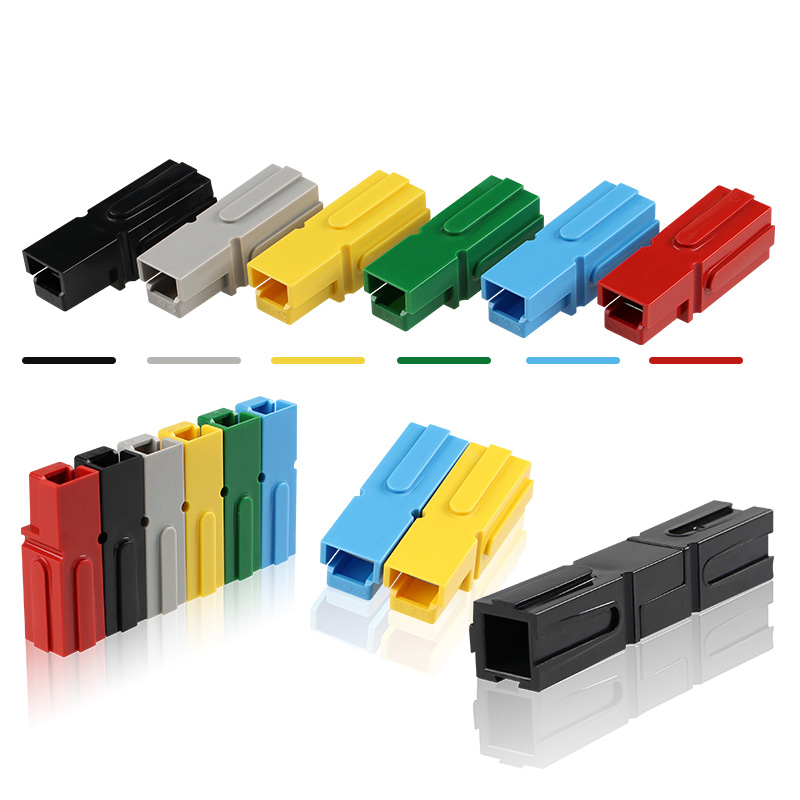

2. **Color Options:** The SED Single Pole Connector is available in a variety of vibrant colors, including red, black, gray, blue, green, and yellow. Choose the color that suits your preferences or allows for easy identification in complex electrical setups.
3. **Durable Housing Material:** The connector's housing is crafted from high-quality PC material with a UL94V-0 flame retardant rating, ensuring durability and safety in various operating conditions.
4. **Injection Molding Process:** The connectors are manufactured using precision injection molding techniques, guaranteeing consistency and reliability in every unit.
5. **Silver-Plated Copper Contacts:** The connector's contacts are made of high-quality copper and coated with a layer of silver for enhanced conductivity and corrosion resistance.
6. **Cold Press Six-Sided Crimping:** The connector features a cold press six-sided crimping process for secure and efficient wire termination, ensuring a stable electrical connection.
2.Technical Parameters:
Rated current(Amperes) | 120A |
Rated voltage(Volts) | 600V |
Insulation Resistance | 5000MΩ |
Without load(Contact/Disconnect Cycles) | To 10000 |
Flammability | UL94 V-0 |
The insertion force of finished products |
≥2.5kgf |
The pullout force of finished products |
≥3kgf |
(AWG)Contact Barrel Wire Size(AWG) | 02~ 6AWG |
Environment Temperatures(℃) |
-20℃---125℃ |
Material of terminal | Red copper |
Process of production | Precision punching |
Fully Ag-plating on surface, it’s Ag-plating thickness | 1μm |
Shrapnel | Stainless steel |
Process of production | Precision punching Plastic Injection |

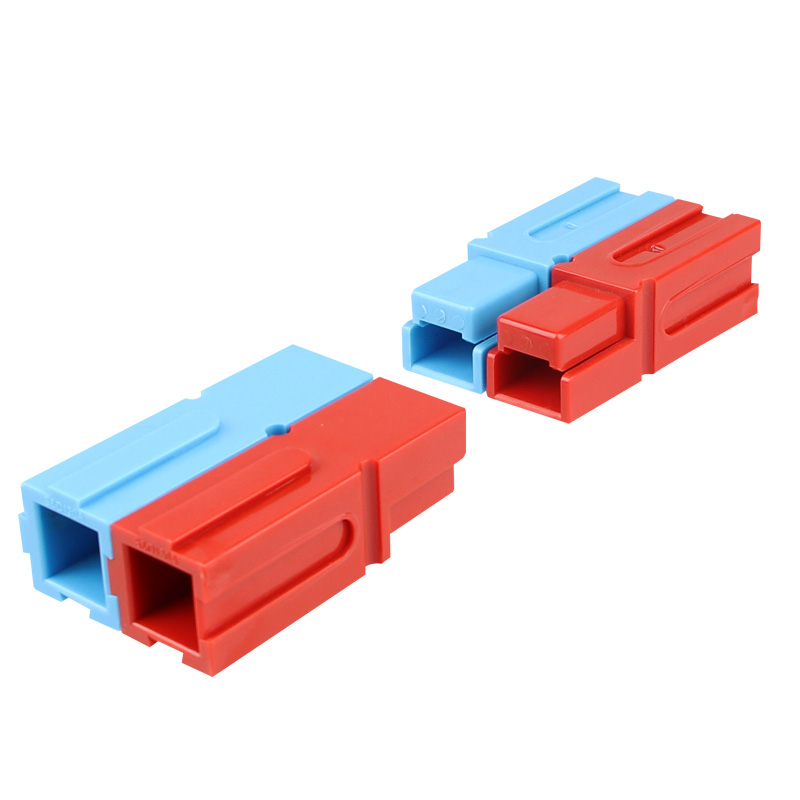

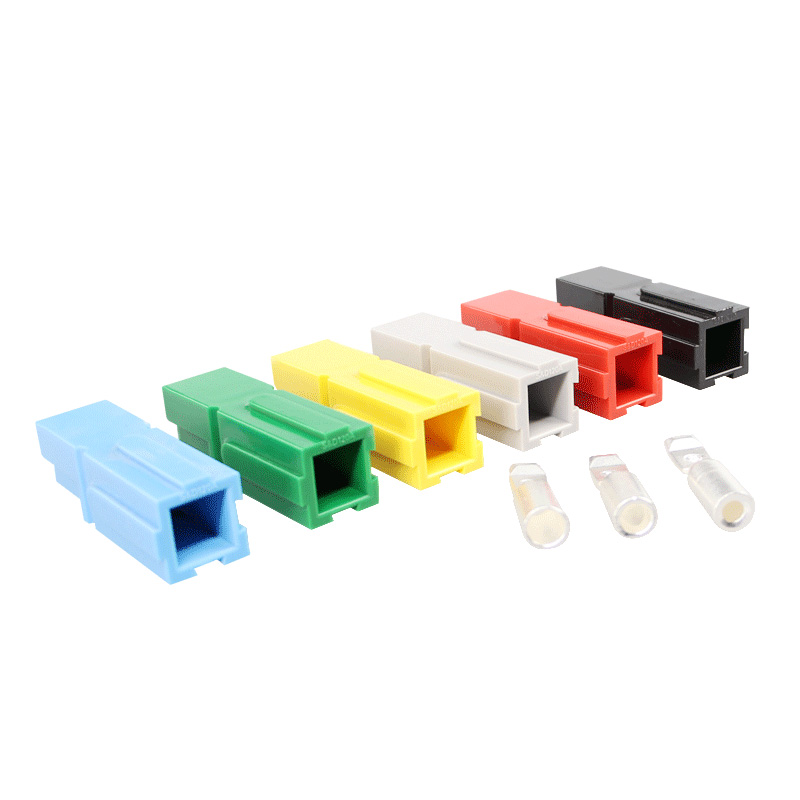

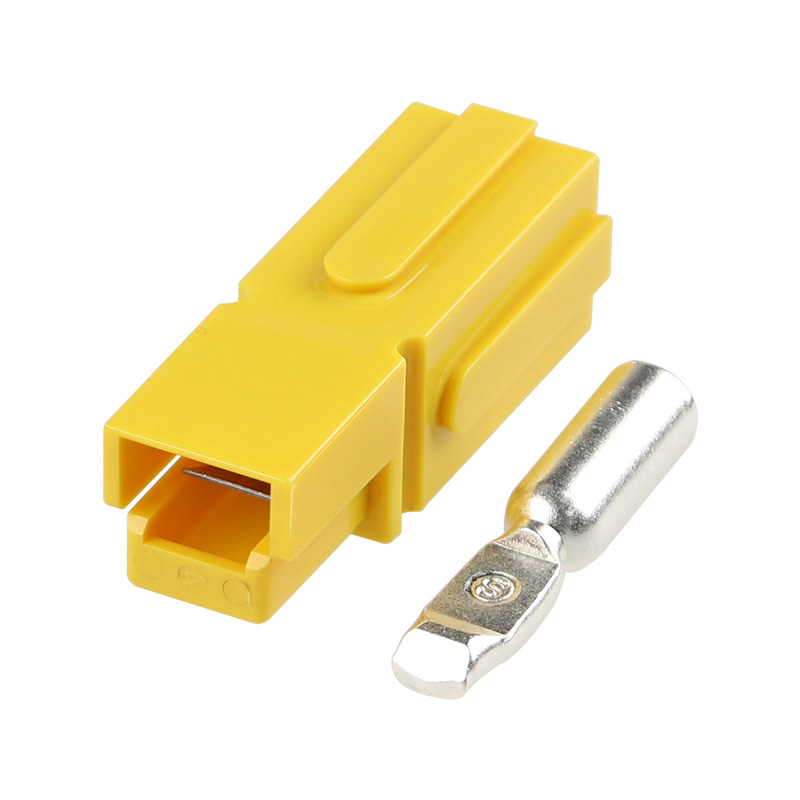

3.Picture Introduction:
4.Our Advantages:
∗At our company, we take pride in our ability to seamlessly integrate the research, development, production, and sales of various high-current connectors and accessories for new energy SEDlications.
∗Offering unparalleled OEM cable harness customization and full-service connector and wire harness solutions, our team delivers a comprehensive SEDroach to meeting your needs.
∗From start to finish, our goal is to provide exceptional quality and service, ensuring the success of your project. Trust us to be your all-in-one partner for cutting-edge new energy interconnectivity.
5.Packages & Shipping:
Our products are packaged to international standards, ensuring that your order arrives in immaculate condition. We are based in Guangdong, China, and dispatch all orders from this location. With our commitment to professional and efficient service, you can trust us to deliver your goods with utmost care and attention to detail.
6.FAQ:
Q: What services does your company offer for high-current connectors and cabling solutions?
A: Our company specializes in providing professional development, design, and integrated cabling solutions for high-current connectors ranging from 5A to 350A. We also offer production and sales of a wide range of high-current connectors, plugs, and UPS/EPS power sockets to support various industries, including automotive, electric vehicles, communication power, medical equipment, power distribution equipment, material handling equipment, solar energy, and new energy.
Our company boasts its own production and R&D base, and has obtained ISO9001 quality system certification. All of our products meet CE, 3C, and other certifications, as well as RoSH and REACH environmental protection requirements. With our commitment to quality and excellence, we offer reliable and efficient solutions to support our clients' businesses.
