12KW Electric Forklift AGV RGV charger

12KW Electric Forklift AGV RGV charger

High Input Power Factor: This intelligent charger boasts an exceptional input power factor, ensuring optimal power utilization.



Low Input Current Harmonic: With minimal input current harmonic distortion, it ensures a clean and stable power supply.



High Efficiency: The charger's high efficiency not only reduces energy consumption but also minimizes heat generation, contributing to a longer lifespan.

  • Order(MOQ) :

    1
  • Payment :

    TT
  • Product Origin :

    GuangDong
  • Shipping Port :

    Shenzhen
  • Lead Time :

    Delivery time according to customer requirements

12KW Electric Forklift AGV RGV charger

1.Product Introduction:

12KW 200A Intelligent Energy Storage Charger represents a revolutionary advancement in the realm of intelligent chargers.



This state-of-the-art product has been meticulously developed, drawing from extensive field application knowledge and years of research and development in power electronic technology.



The result is a charger that excels in every aspect, from performance to efficiency and beyond.



Excellent EMC Performance: Its superior electromagnetic compatibility performance ensures seamless operation in various environments.



Simplicity in Operation: The product's user-friendly interface and intuitive controls make it easy to operate and maintain.



Reliability: Built with reliability in mind, this charger offers consistent performance and dependable power supply.



Aesthetic Design: With its sleek and modern design, this charger not only performs exceptionally but also looks great in any setting.



Versatile Application: This charger is well-suited for a wide range of industries, including transportation, industrial settings, logistics, and more.

2.Technical Parameters:



Item

Parameter index

Input technical parameters

Input voltage

Three-phase five-line (A B C N PE) / three-phase four-wire (A B C PE) AC380V± 15% [Actual line system is subject to material objects]

Frequency

45Hz~65Hz

Input current

<15A

Power factor

0.9

Current distortion

5%

Output technical parameters

Maximum voltage

DC60V

Maximum current

200A

Maximum power

12KW

Output voltage range

42~60VDC

Limit the range of current adjustable

5A-200A

Efficiency

>90%

Voltage ripple

<3%

Current ripple

<3%

Voltage regulation accuracy

5

Current regulation accuracy

1%

Charging curve

BMS given

Working environment conditions

Operating ambient temperature

-20~45regular work; 45~70reduced output.

Storage temperature

-40~70

Relative humidity

0~95%

Altitude

2000m Full load output

Defencive function

Input protection

Input undervoltage, input overvoltage

Output protection

Output overvoltage, output short circuit, battery reverse connection

Overtemperature protection

Over-temperature inside the module protects shutdown.

Abnormal protection

Abnormal power device protection shutdown

Emergency stop protection

When an uncontrollable abnormality occurs, the shutdown can be forced through the emergency stop button

Interface

CAN interface

1 way

485 interface

The 7-inch touch screen can support 1 way

Human-computer interaction

Display mode

7-Inch touch screenSegment code screenSpecific to the actual customized selection shall prevail

External shape and protection

Case size

External size (host) 540 (L) 350 (W) 630 (H)

Levels of protection

IP21

Other

Heat dissipation mode

Forced air cooling

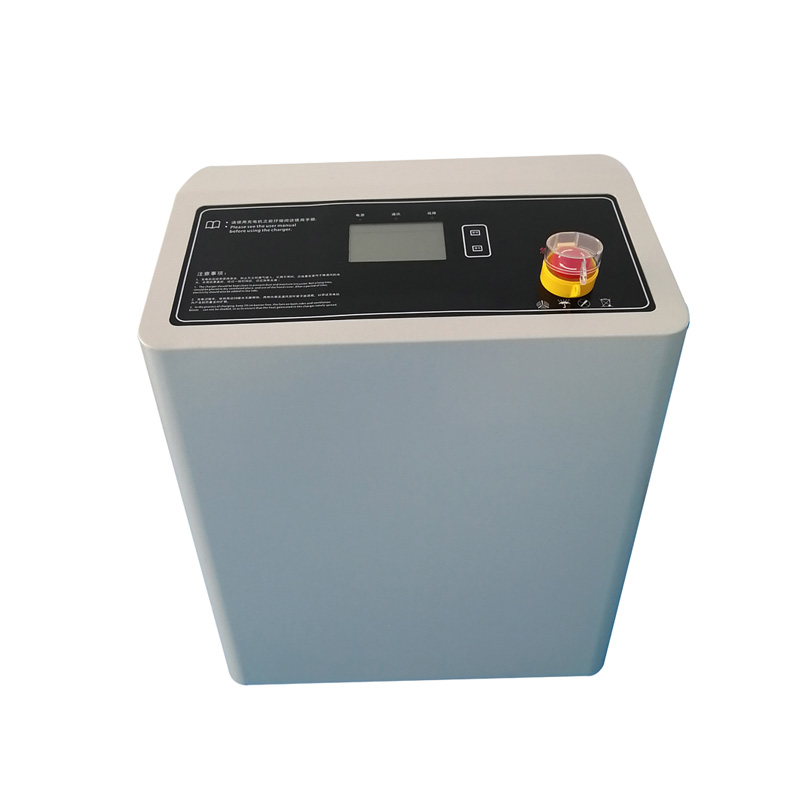

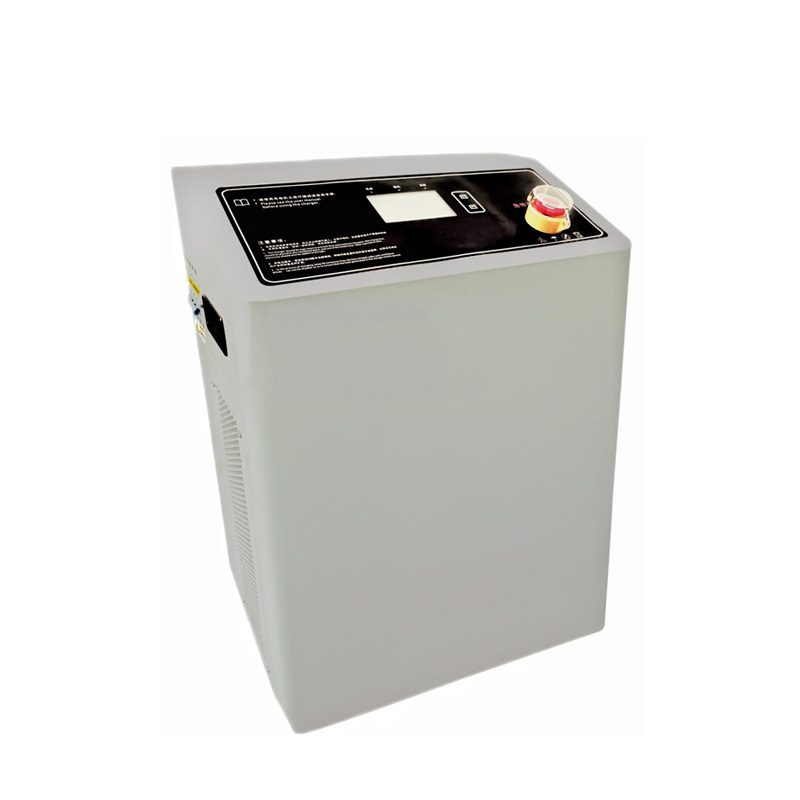

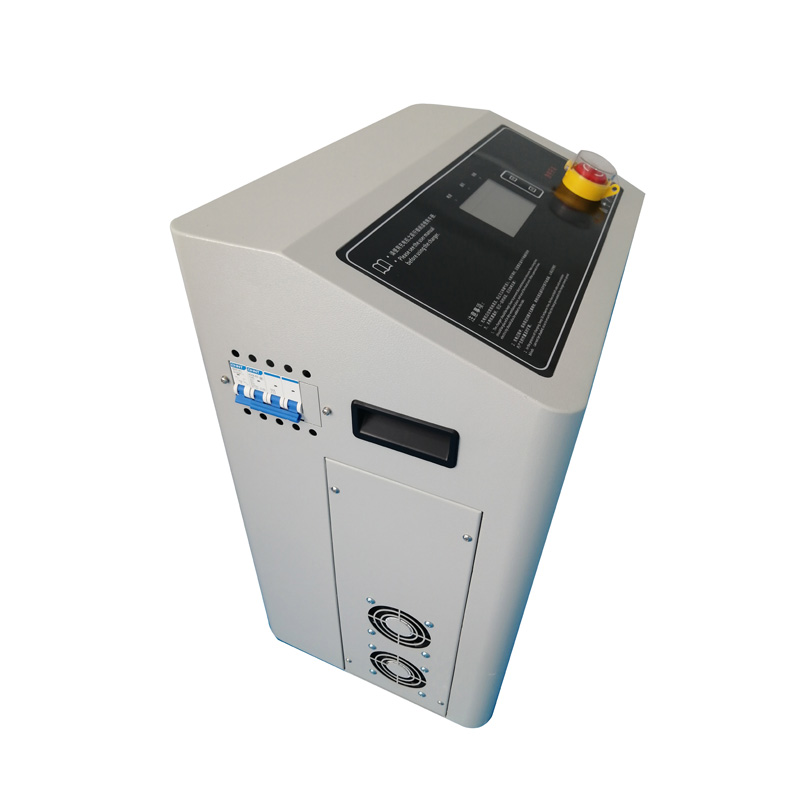

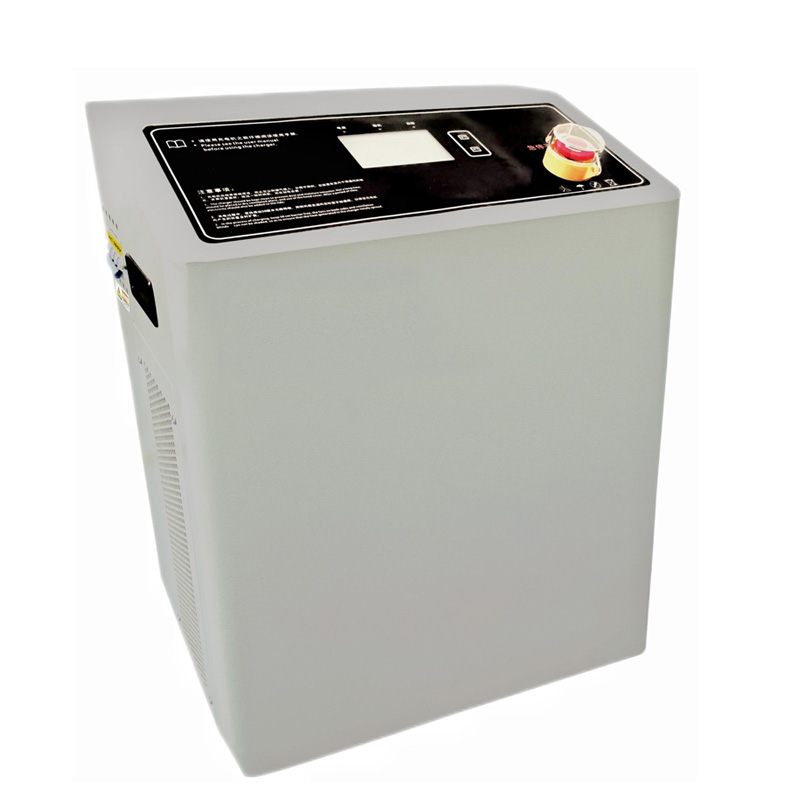

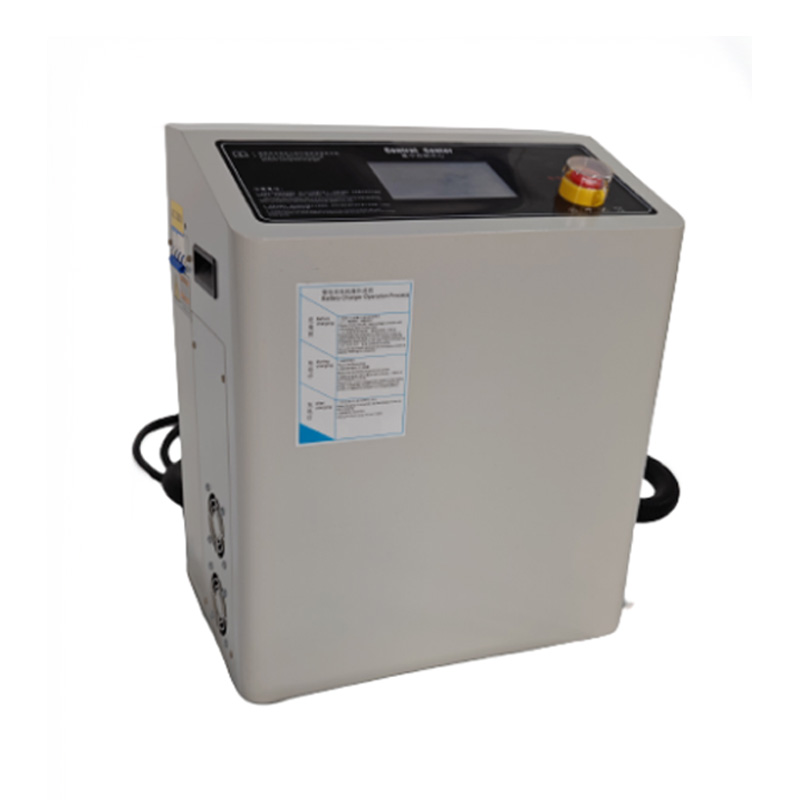

3.Picture Introduction:









4.Our Advantages:

∗At our company, we take pride in our ability to seamlessly integrate the research, development, production, and sales of various high-current connectors and accessories for new energy applications.

∗Offering unparalleled OEM cable harness customization and full-service connector and wire harness solutions, our team delivers a comprehensive approach to meeting your needs.

∗From start to finish, our goal is to provide exceptional quality and service, ensuring the success of your project. Trust us to be your all-in-one partner for cutting-edge new energy interconnectivity.



5.Packages & Shipping:

Our products are packaged to international standards, ensuring that your order arrives in immaculate condition. We are based in Guangdong, China, and dispatch all orders from this location. With our commitment to professional and efficient service, you can trust us to deliver your goods with utmost care and attention to detail.



6.FAQ:

Q: What services does your company offer for high-current connectors and cabling solutions?

A: Our company specializes in providing professional development, design, and integrated cabling solutions for high-current connectors ranging from 5A to 350A. We also offer production and sales of a wide range of high-current connectors, plugs, and UPS/EPS power sockets to support various industries, including automotive, electric vehicles, communication power, medical equipment, power distribution equipment, material handling equipment, solar energy, and new energy.

Our company boasts its own production and R&D base, and has obtained ISO9001 quality system certification. All of our products meet CE, 3C, and other certifications, as well as RoSH and REACH environmental protection requirements. With our commitment to quality and excellence, we offer reliable and efficient solutions to support our clients' businesses.
